User Guide

WHICH SAFE IS RIGHT FOR YOU?

The most important initial question is what you want to protect – cash and valuables, documents or data media?

CASH AND VALUABLES

Choose from the burglary protection range. This includes safes, cabinets, vaults & vault doors, designed to with stand physical attacks in different strengths or Grades. Each Grade represents a particular “cash rating” which is the amount an insurer will cover. The actual amount of cover can vary between insurance companies and country, and may be different to the manufacturer's recommended rating. You should always check what cover your insurance company is prepared to offer.

DOCUMENTS AND DATA MEDIA

Choose from the fire protection range which includes safes and filing cabinets designed to keep documents or data media safe from the effects of a fire.

DOCUMENTS

To survive a fire, documents require protection from temperatures higher than 170°C. Therefore cabinets have to be specifically designed, tested and then certified for this task. Without a credible certification, you cannot be sure that your documents are safe.

DATA MEDIA

The same is valid for data media, except here the cabinet must offer much greater protection due to the sensitivity of the material. If the inside of the cabinet exceeds 50°C, then the information on a CD, DVD or tape will be destroyed.

CERTIFIED STRENGTH

FOR BURGLARY PROTECTION

Safes and vaults are awarded grades:

For security cabinets, there are Grades S1 and S2 (EN 14450).

For safes, vaults and vault doors, they are rated from Grade 0 to Grade XIII (EN 1143-1).

High security locks are graded according to EN 1300 in security levels A, B, C and D, the highest.

During the certification process, door panels of the products, bolt works, locks and handles are tested. The certification tests include an attack program that is devised so that various break-in attempts can be made using a selection of tools. A correlation between tool type and the time for which each one is used can be used to obtain a resistance score (resistance unit). The higher the score, the higher the level of resistance. Based on the results obtained, the safe is given a classifi- cation and then listed in a resistance grade.

FOR FIRE PROTECTION

These standards vary according to whether you want to protect paper documents, digital media or other highly sensitive objects. This is because the temperature at which data media (e.g. 50°C) and documents (e.g. 170°C) deteriorate differs according to the item protected:

In order to fully protect data media, industry standards indicate that products should carry ECB•S EN 1047-1, UL 72 Class 125 or NT Fire 017 60/120 DIS.

The ECB•S and UL tests monitor the internal temperature of the data cabinet until it has completely cooled down during the “soakout” period. Assessing products during this period is essential, since internal temperatures can peak up to six to eight hours after a fire has been extinguished. Such tests ensure that all products are compre- hensively tested and, upon passing, will fully protect your data media for the specific time period stated.

For document protection, all products must have an appropriate industry standard 30-, 60- or 120-minute paper certificate.

UL 72 Class 350, ECB•S EN 1047-1, EN 15659 or NT Fire 017 are acceptable standards for paper document protection.

Image 1

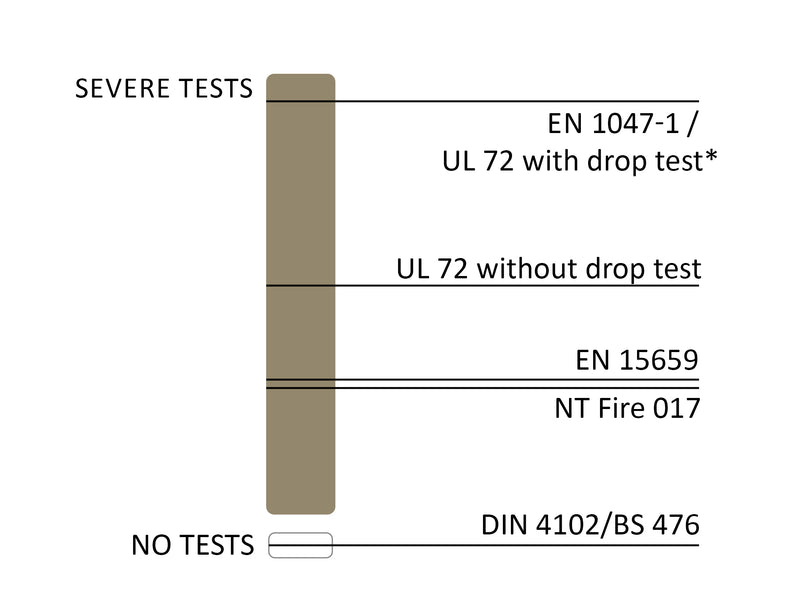

LEVELS OF RESISTANCE

Alongside extremely strict standards, you will also find a number of others that are less stringent in terms of resistance.

Image 2

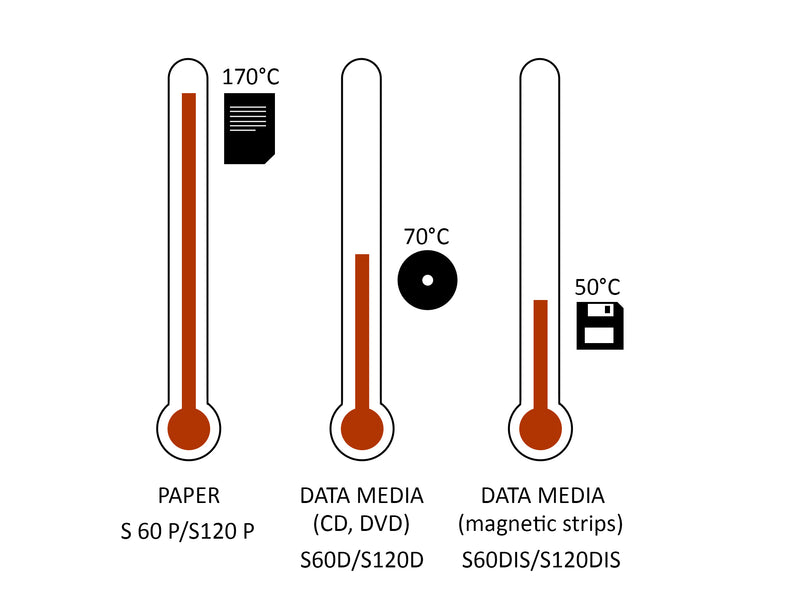

HIGHEST ALLOWED INSIDE TEMPERATURE

STANDARD IN BRIEF

STANDARDS TEMPERATURE TEST DROP TEST PAPER DATA MEDIA COOLING
EN 1047-1 1090°C 9.15 metres S 60 P (60 min.) /S 120 P (120 min.) S 60 DIS (60 min.) /S 120 DIS (120 min.) incl. the cooling period
UL 72 1090°C 9.15 metres(In UL the drop test isoptional so always checkwhat is being claimed) Class 350 (1⁄2, 1, 2 hours) Class 125 (1⁄2, 1, 2 hours) incl. the cooling period
EN 15659 850°C no LFS 30 P (30 min.) /LFS 60 P (60 min.) no application not tested
NT Fire 017 1090°C no 60 paper (60 min.) /90 paper (90 min.) /120 paper (120 min.) 60 diskettes (60 min.) /120 diskette (120 min.) not tested
DIN 4102/BS 476 not tested not tested not tested not tested not tested

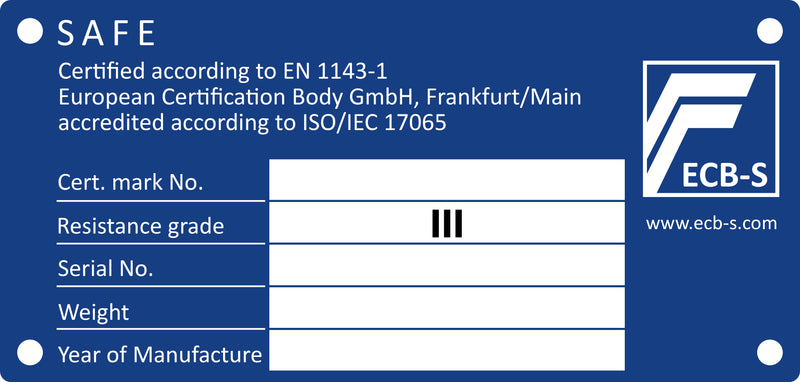

EUROPEAN CERTIFICATION FOR SAFES EXPLAINED

In order to attest to the quality of a certified product, an information plate is adhered to the inside of the product. This provides you with guarantees that the product has been tested and manufactured in an environment that has been checked by the certifying body. Below is shown the ECB•S label and the details listed on the information plate.

EN 1143-1/EN 14450

The European standard that the product meets

CERT. MARK. NO.

Certificate number issued by the certifying body

RESISTANCE GRADE

Resistance classes

SERIAL NO.

Each product can be identified by a unique serial number. This number is given by the certifying body

WEIGHT

The safe's net weight. A 5% tolerance in the net weight indicated is accepted

YEAR OF MANUFACTURE

The year that the product was manufactured

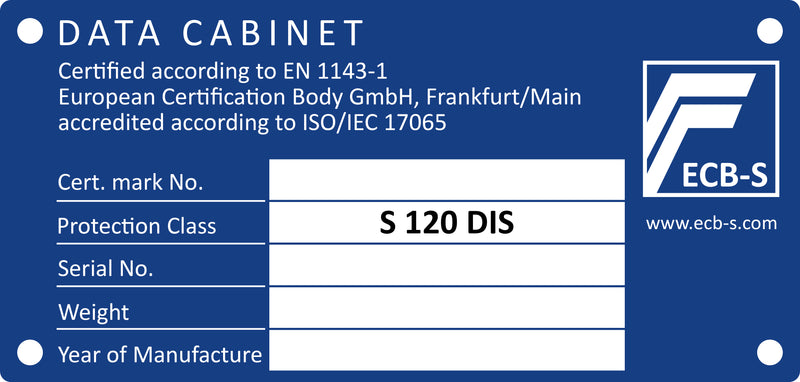

FIRE PROTECTION CERTIFICATION

Discover what makes our product stand out from the rest

EN 1047-1/EN 15659

The European standard that the product meets

Fast Delivery

Get your order delivered within 2-3 business days

CERT. MARK. NO.

Certificate number issued by the certifying body

PROTECTION CLASS

Your payment information is always safe and secure

YEAR OF MANUFACTURE

The year that the product was manufactured

WEIGHT

The safe's net weight. A 10% tolerance in the net weight indicated is accepted

SAFES BY CERTIFICATION

PRODUCT STANDARD CLASSIFICATION CERTIFICATION BODY
Air n/a n/a n/a
Air Hotel n/a n/a n/a
Alpha Plus n/a n/a n/a
Consul EN 1143-1 Grade 0 to I ECB•S
Europa GV T2 EN 1143-1 Grade V T2 ECB•S
Europa GVI EN 1143-1 Grade VI ECB•S
Europa Deposit n/a n/a n/a
ForceGuard n/a n/a n/a
Fortis EN 14450 Level S2 ECB•S
HomeStar n/a Silver Level Sold Secure
Omega Deposit n/a n/a n/a
ProGuard GIII EN 1143-1 Grade III ECB•S
ProGuard DT EN 1143-2 Grade DI to DII ECB•S
Regal n/a n/a n/a
Rhino Mk II DT n/a n/a n/a
Sigma Deposit n/a n/a n/a
Vega EN 1143-1 Grade V ECB•S

FIRE PROTECTION

PRODUCT STANDARD CLASSIFICATION CERTIFICATION BODY
6000 Series Files EN 15659 LFS 60 P ECB•S
Archive Cabinet n/a n/a n/a
Binder Fire File UL 72 Class 350 2h Fire Resistance UL
DataGuard NT NT Fire 017 120 Diskette RISE
DPC UL 72 Class 350 2h Fire Resistance UL
Executive NT Fire 017 & UL 72 Class 350 60 Paper & 1h Fire Resistance RISE & UL
Fire File 25" UL 72 Class 350 1h Fire Resistance UL
Fire File 31" UL 72 Class 350 1h to 2h Fire Resistance UL
Lateral Fire File UL 72 Class 350 1h Fire Resistance UL
Ultra Fire File 31" UL 72 Class 350 1h to 2h Fire and Impact Resistance UL

COMBINED BURGLARY & FIRE PROTECTION

PRODUCT STANDARD CLASSIFICATION CERTIFICATION BODY
ChubbsafesTM 1835 EN 1143-1 & EN 1047-1 Grade I T2 & S 60 P ECB•S
DataPlus EN 14450 & EN 1047-1 & UL 72 Class 125 Level S2 & S 120 DIS & 2h Fire Resistance ECB•S & UL
DuoForce T2 EN 1143-1 & NT Fire 017 Grade IV T2 to VI T2 (optional CD*) & 60 Paper ECB•S
DuoGuard GI T2 EN 1143-1 & EN 1047-1 Grade I T2 & S 60 P ECB•S
DDuoGuard GII T2PC EN 1143-1 & NT Fire 017 Grade II T2 & 90 Paper ECB•S & RISE
DuoGuard GIII EN 1143-1 & NT Fire 017 Grade III & 60 Paper ECB•S
Europa GI-III T2 EN 1143-1 & NT Fire 017 Grade I T2 to III T2 & 60 Paper ECB•S & RISE
HomeSafe S2 30P / Viper EN 14450 & EN 15659 Level S2 & LFS 30 P ECB•S
Mini Banker Mk II EN 14450 & JIS S 1037 Level S2 & 1h ECB•S & Bandung Institute of Technology
Rhino Mk II EN 14450 & EN 15659 Level S2 & LFS 60 P ECB•S
Rhino Mk II DT n/a n/a n/a
Senator EN 1143-1 & EN 15659 Grade I & LFS 30 P ECB•S

COMBINED BURGLARY, FIRE & EXPLOSION PROTECTION

PRODUCT STANDARD CLASSIFICATION CERTIFICATION BODY
TriForce T2 EN 1143-1 & NT Fire 017 Grade IV T2 to VI T2 & Grade IV T2 EX to Grade VI T2 EX (optional CD*) & 60 Paper ECB•S

WHICH LOCK ISRIGHT FOR YOU?

Depending on the range, you can customise your product with a different lock. Thus you can benefit from a comprehensive lock offering that includes the latest industry solutions, which offer a wide range of features. So whether it be the “mechanical combination” lock or an electronic solution, you can be sure to have a lock that will meet your security needs. Below the key terms associated with the range of locks.

KEY LOCK

A manual key-operated lock.

MECHANICAL COMBINATION

A mechanicalkeyless dial lock with a changeablecombination.

ELECTRONIC LOCK

An electronically-operatedkeypad lock with a changeable combination.

MANAGER MODE

Allows one user to controlthe functions of other combination holders.

NUMBER OF USERS

The number of users able to program in their own access code.

DURESS FEATURE

An alarm engineer can link the lock into a monitored alarm system. Then, using a given procedure, the lock can be operated, the safe opened and a silent signal given to the monitoring station that this is being done under duress.

TIME DELAY

This feature allows for a pre-set delay between operating the lock and being able to open the safe. The operation may vary between lock types.

TIME LOCK

Time lock allows the user to set periods during which the lock may be operated, e.g. during business hours only. The options available will vary between locks.

AUDIT TRAIL

The lock is able to give a report (it will vary in detail from model to model) of usage and may show times of operation, codes used and operations performed.

DUAL CONTROL

Allows two users to enter their details before any operation can be performed.

ISO-CERTIFIED PRODUCTION SITES

The Chubbsafes products that are manufactured in ourproduction sites are created under the most stringent productionprocesses following the principles of the latest quality, healthand safety and environmental management systems,and demonstrate our clear commitment to sustainability.
